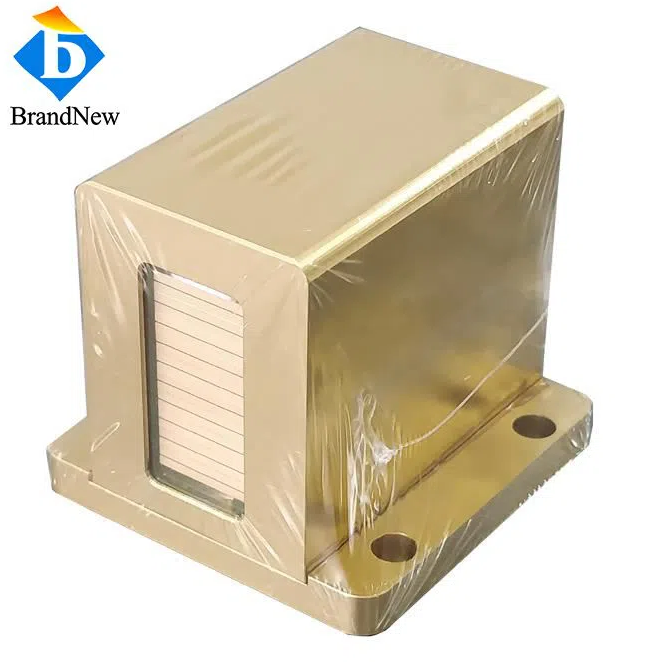

755 808 1064nm ADSS 3 different wavelength mix Laser Diode.

Features:

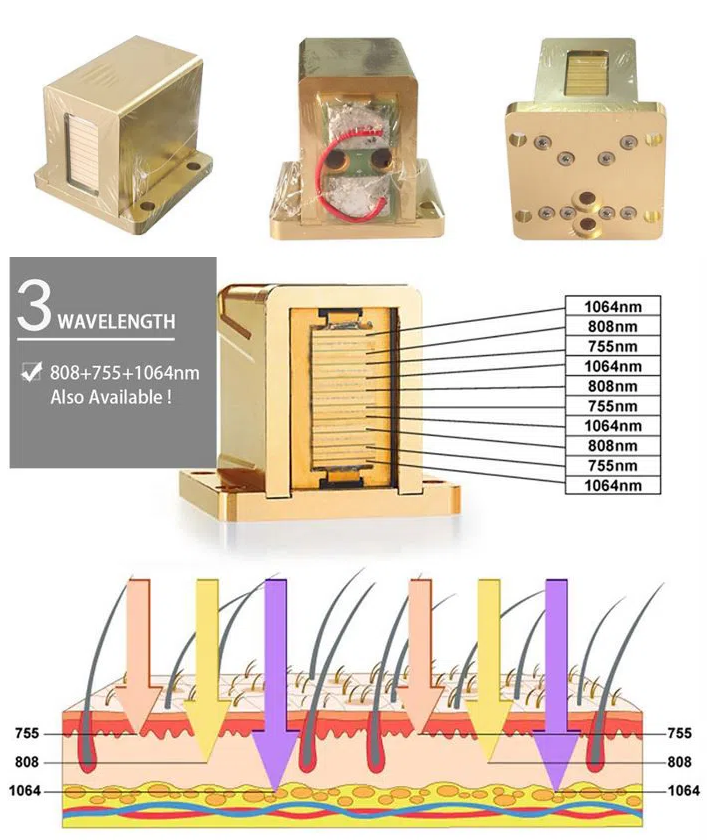

3 different wavelength mix(755nm+808nm+1064nm), Single wavelength is also available.
Ausu Soldering ensure high reliability.
10 Bars, number of bars can be customized.

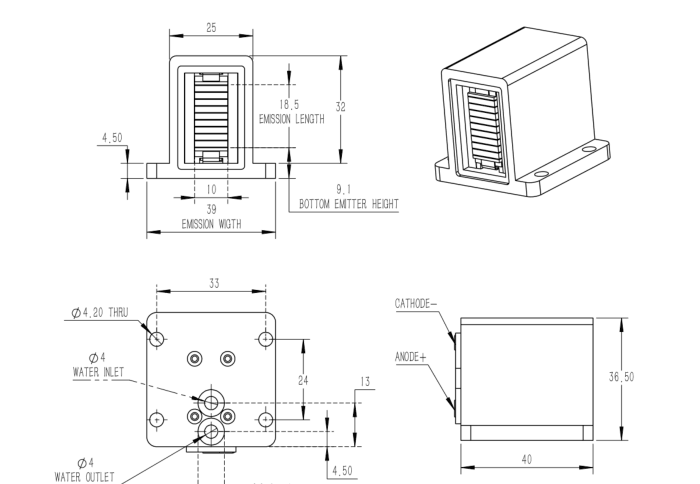

Standard size, special design for most Chinese Hair Removal Machine repair and replacement.

Optical
Center Wavelength 755nm/808nm/1064nm
Wavelength Tolerance ±10nm
Working Mode QCW
Output Power Per Bar 60W
Number of Bars 10
Fast Axis Divergence(FWHM) 38Deg
Slow Axis Divergence(FWHM) 12Deg
Pulse Width ≤400ms
Duty Cycle ≤40%
Electrical
Operating Current ~50A
Threshold Current ~10A
Operating Voltage ~18V
Conversion Efficiency ~50%
Thermal
Operating Temperature 20~30℃
Storage Temperature 0-55℃
Others
Coolant Distilled Water
Flow Rate/Bar 4~6L/min
Max Inlet Pressure 350~500kPa
Water Temperature(No Condensation) 23~27℃
Filtered Water Particles <20μm
