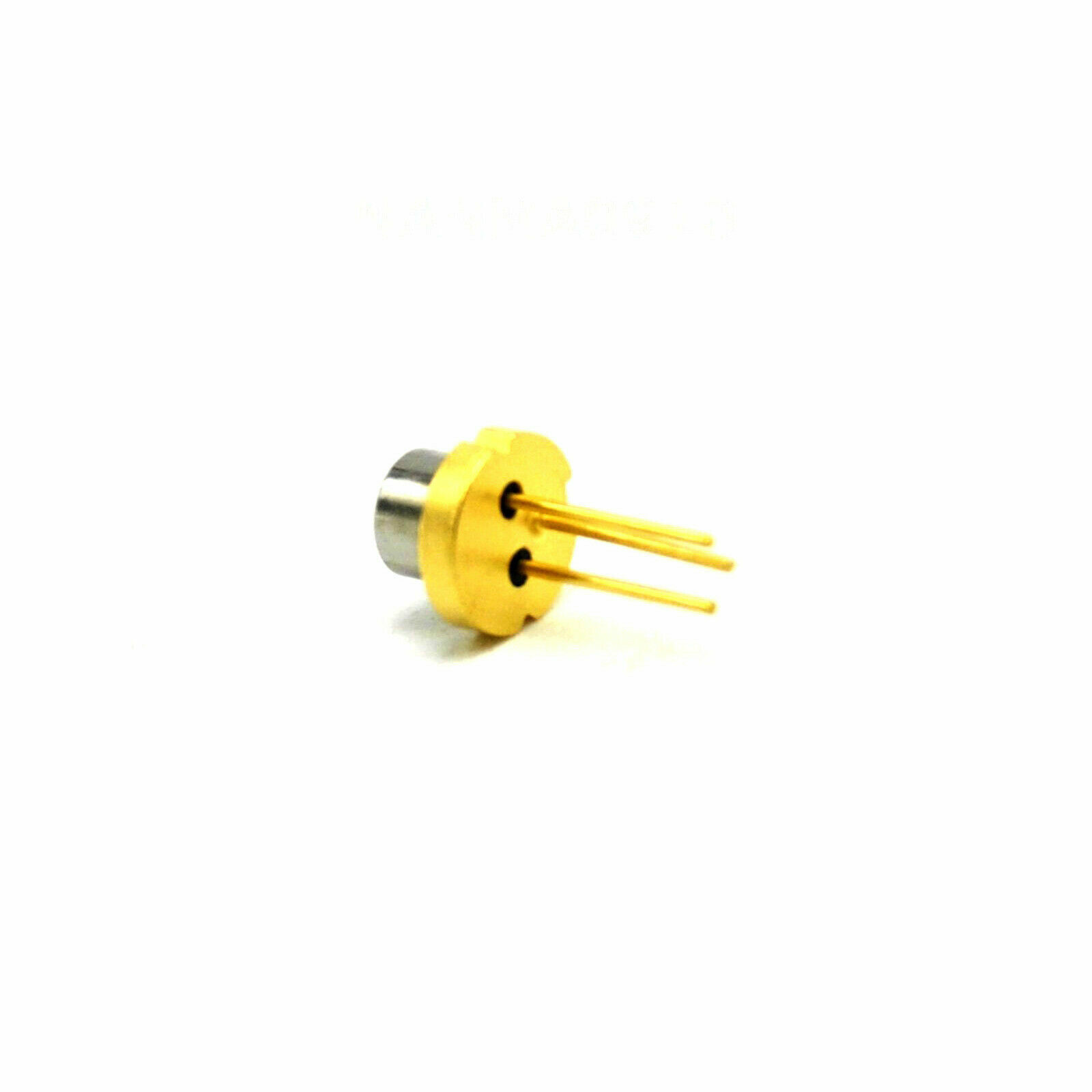

495nm 60mW Single Mode Laser Diode WSLD-495-060m-1
Wavelength: 495nm
Output Power: 60mW
TO18 Package (5.6mm)
Single transverse mode
Fabry Perot laser
Center Wavelength@25 490nm 495nm 499nm
Spectral Width (FWHM)： 2.0nm
Output Power：—- 60mW —-
Laser Mode：Single Mode
Beam Divergence (FWHM)：—-：24° x 8°// 26° x 12°//
Threshold Current (Typ.)：—- 30mA 60mA
Operating Current (Typ.)： —- 115mA 130mA
Operating Voltage：—- 6.5V 8.0V
download datasheet.
