1530-1565nm C band gain flat erbium-doped fiber amplifier

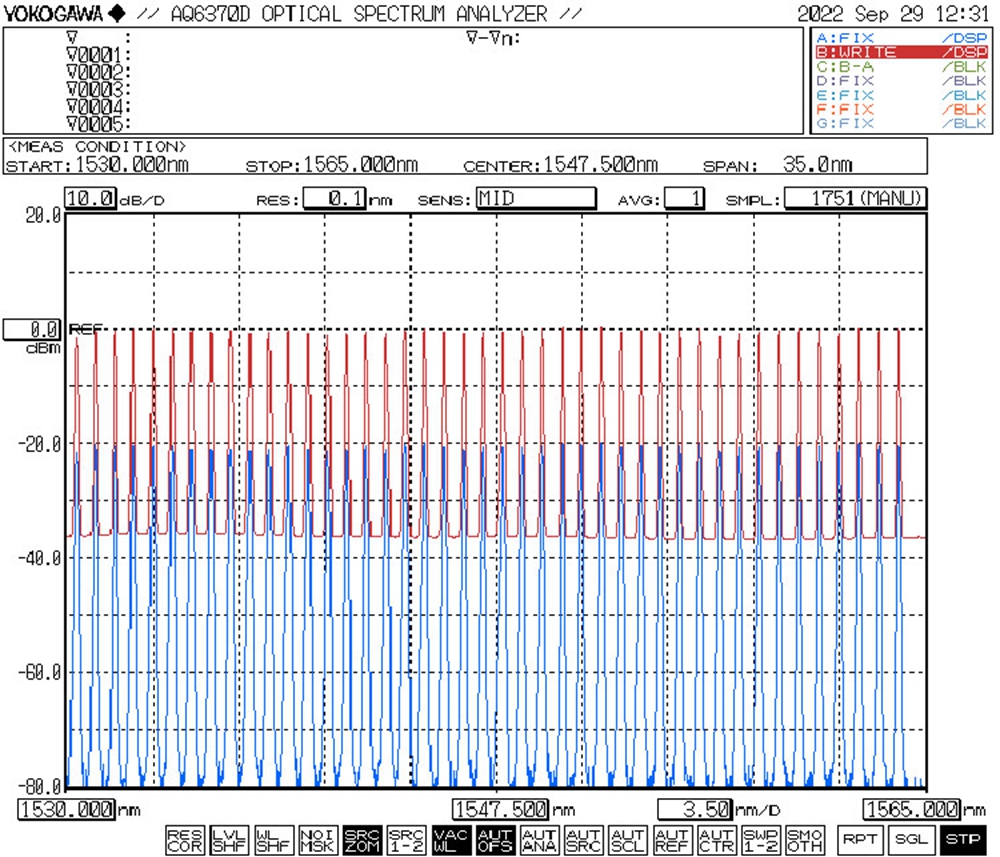

The gain flat erbium-doped fiber amplifier is a family of fiber optic amplifiers dedicated to optical fiber communication systems, which can amplify multiple wavelength signals in the C-band at the same time, and maintain the same gain between wavelengths, with a gain flatness of ≤ 1.5 dB. It has the advantages of a wide spectrum, multiple wavelengths, flat gain, and high gain and low noise.
characteristic
The gain is flat
High gain factor
High output power
apply
Optical fiber communication
Fiber optic sensing
Fiber lasers
parameter
Model：EDFA-C-PA-GF
Wavelength ：1530-1565nm
Input power: -45~-25dBm
Maximum Output Power: 14dBm
Gain Factor : 25dB
Noise figure: <5.0dB

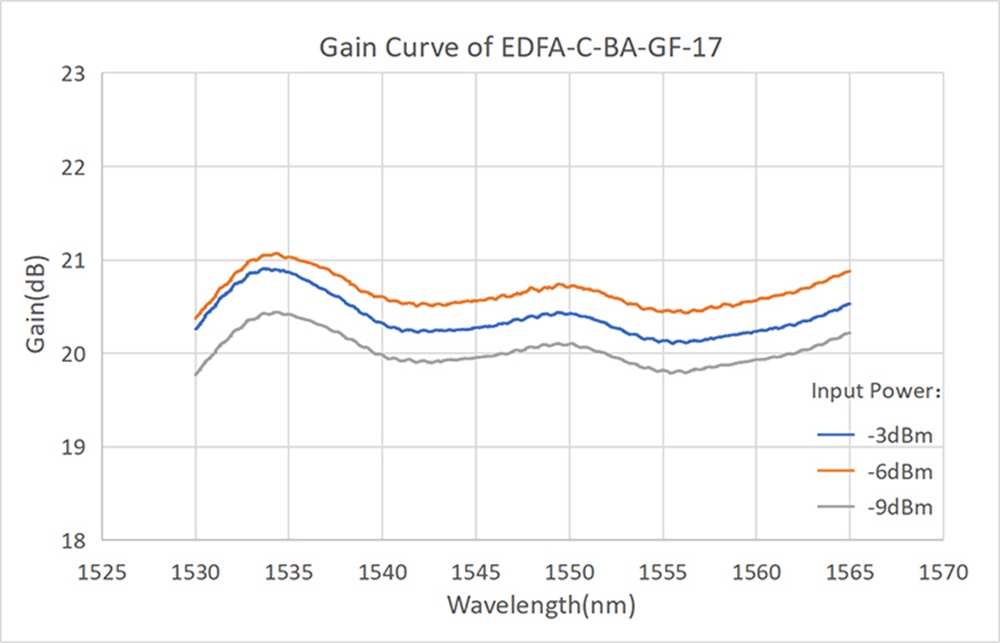

Gain Flatness: ≤1.5
Polarization-dependent gain: <0.3
Polarization mode dispersion: 0.5ps
Input/output isolation: >35dB
Optical power monitoring: output optical power monitoring
Pigtail type: SMF-28 1550
Pigtail joint type: FC/APC
Operating Mode: ACC
Power supply table: 100~240V AC, <30W
Power supply module: 5V DC, <15W
Size: Tabletop: 260(W)×280(D)×120(H)mm
Size module: 125 (W) × 150 (D) × 20 (H) mm
Operating temperature：5 ~ 35°C
Operating humidity：0~70%
