1535-1565nm C-band high-power single-mode erbium-doped fiber amplifier
The high-power erbium-doped fiber amplifier (EYDFA-HP) is based on the principle of laser amplification of the optical signal in the erbium-ytterbium co-doped fiber, and adopts a uniquely designed optical path structure and a reliable high-power laser heat dissipation process to achieve high-power laser output in the wavelength range of 1535~1565nm. It has the advantages of high power and low noise, and can be used for fiber optic communication, lidar, etc.
characteristic
Up to 10 watts of power
High gain factor
Wide wavelength range
apply
Optical fiber communication
Fiber optic sensing
Fiber lasers
parameter
Wavelength ：1535-1565nm
Input power: -6~+10dBm

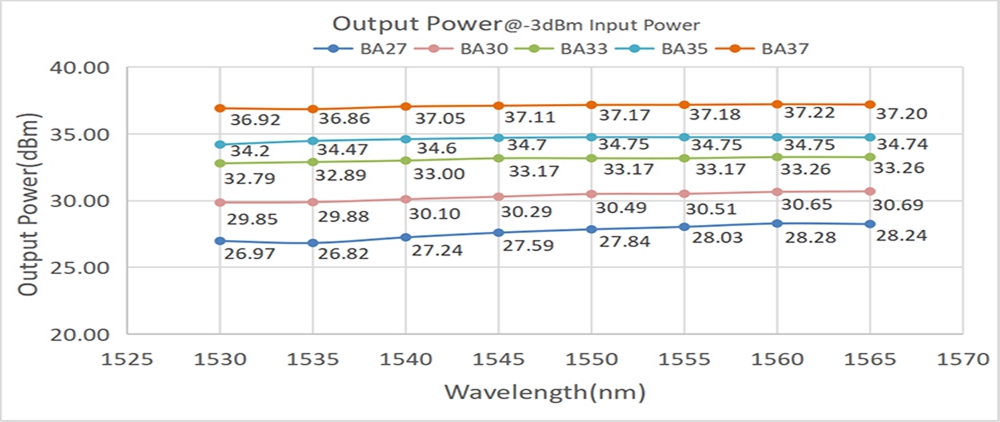

Saturation output power: 27/30/33
Output power adjustable range: 10%~100%
Noise figure: <6.0dB
Gain Flatness: ≤1
Polarization-dependent gain: <0.5
Polarization mode dispersion: 0.5ps
Input/output isolation: >35dB
Optical power monitoring: input optical power monitoring, output optical power monitoring
Pigtail type: SMF-28
Pigtail joint type: FC/APC
Operating Mode: Automatic Current Control (ACC)/Automatic Power Control (APC)
Power supply table: 100~240V AC, < 150W
Power supply module: 12V DC, <60W
Size: Tabletop: 260 (W) × 320 (D) × 120 (H) mm
Size module: 125 (W) × 150 (D) × 30 (H) mm
Operating temperature：5 ~ 35°C
Operating humidity：0~70%
