1540nm-1560nm C band fiber energy transfer laser

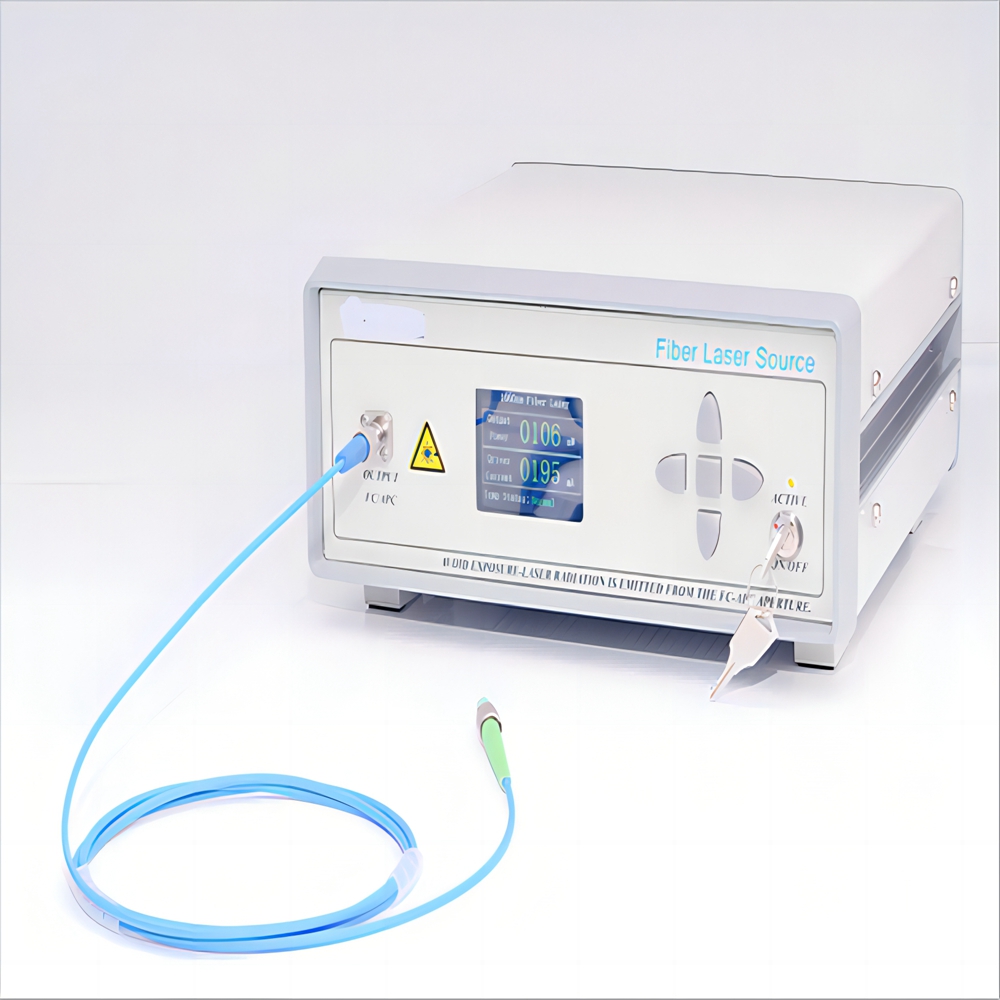

Due to the limitations of fiber loss and light source power, single-mode fiber for communication is usually less efficient in transmitting fiber power and energy. This laser is a fiber laser dedicated to single-mode fiber energy transfer, with an output power of up to 10 watts, and can transmit more than 1km without power loss in single-mode fibers such as G652 and G657 for optical fiber communication, and is suitable for long-distance optical fiber energy supply occasions, with the advantages of passive and anti-electromagnetic interference. The professionally designed drive and temperature control circuit control ensure the safe and stable operation of the laser, and the spectrum and power remain stable for a long time. Available in both desktop and modular versions.
characteristic
1~10W multiple powers
It is suitable for long-distance single-mode fiber transmission
Power and spectral stabilization
apply
Optical fiber energy transfer
Optical fiber communication
Optical experiments
parameter

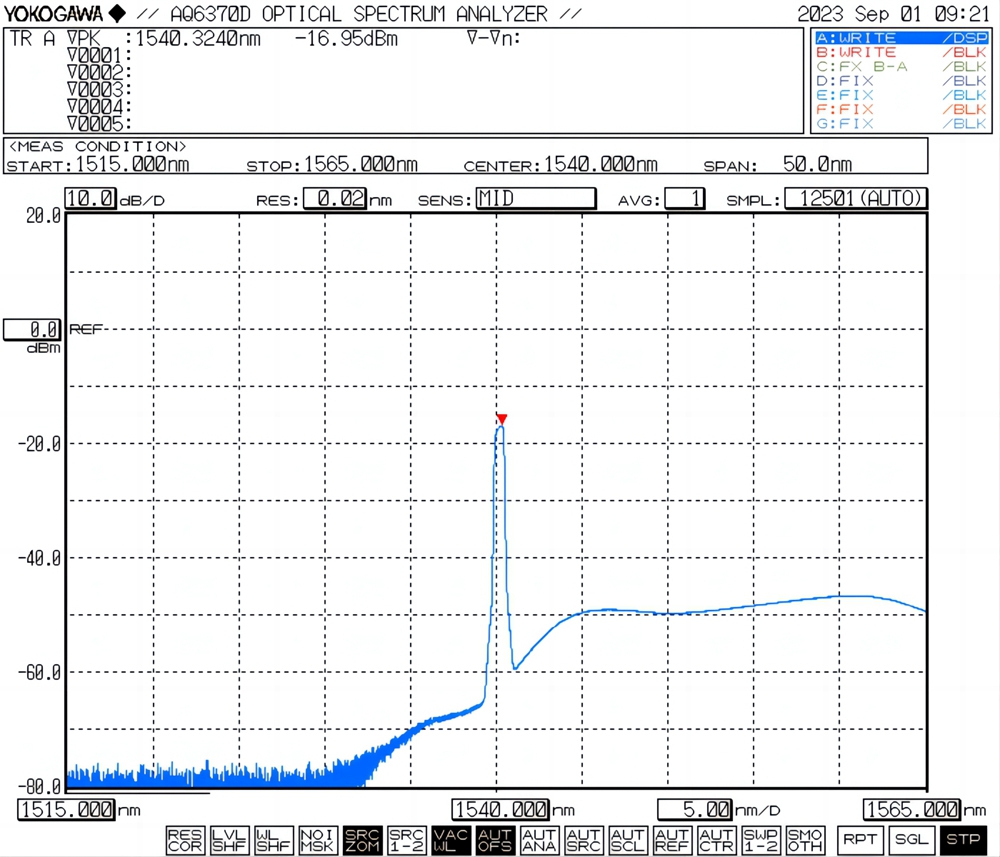

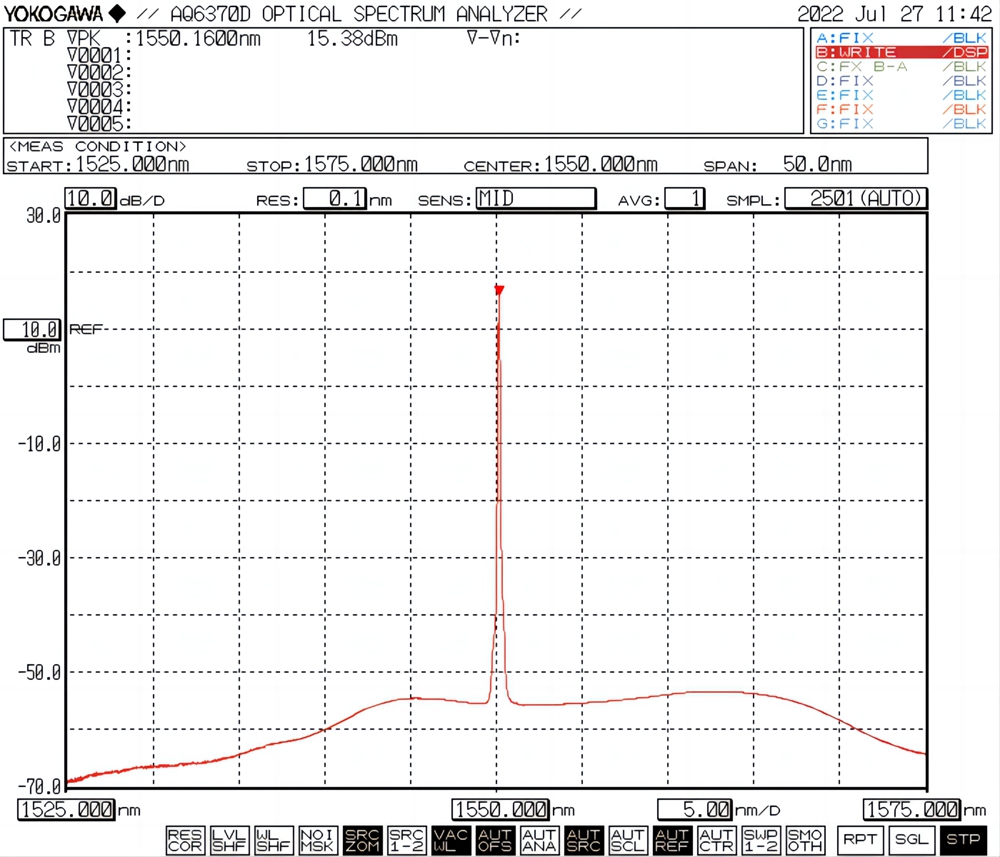

Center Wavelength ：1540~1560nm
Spectral linewidth: ≤1nm
Working mode: CW
Single mode fiber transmission distance: ≥1km
Output power: 1/2/5/10W
Short-term stability (15 mins): ≤ ±0.02dB (equivalent≤±0.5%)

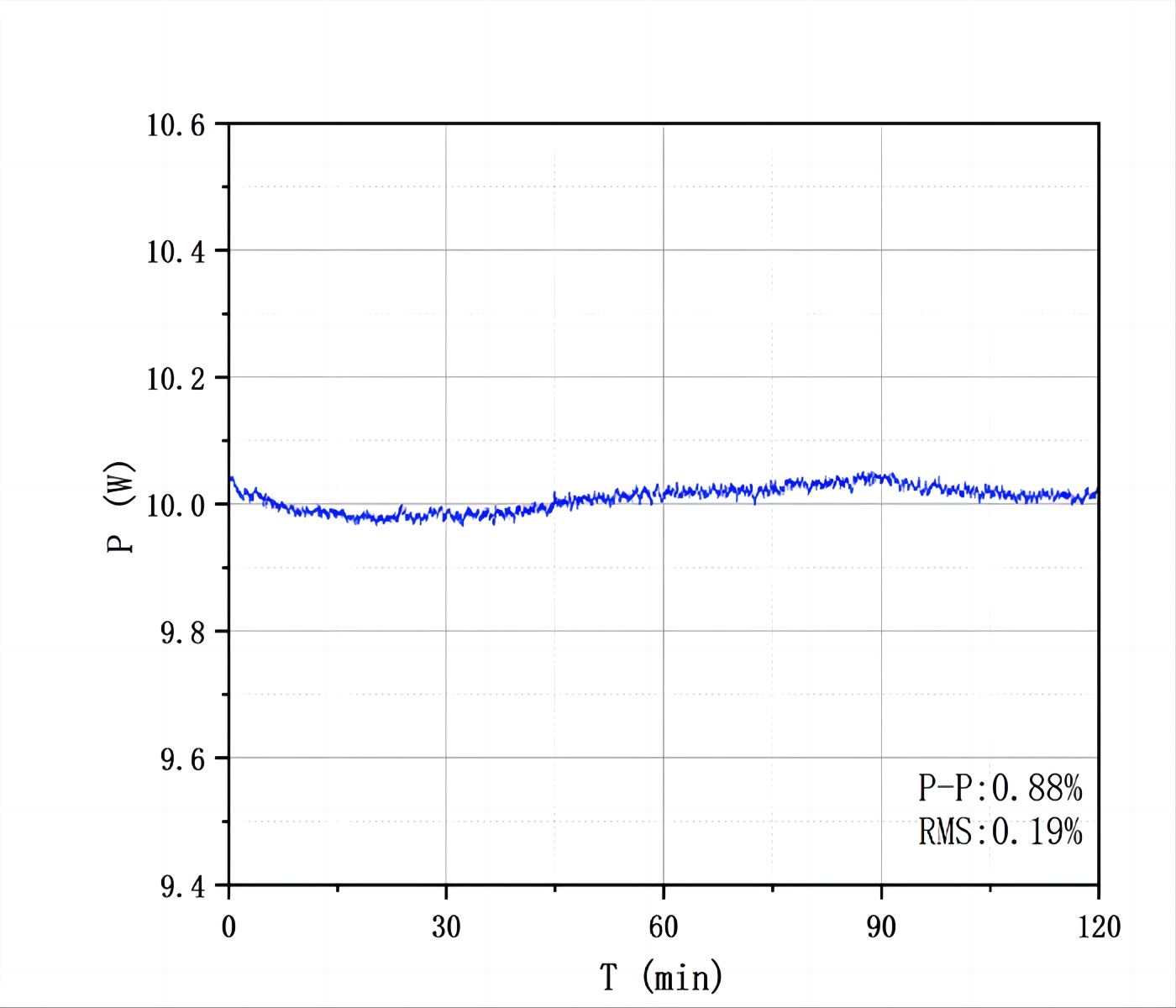

Long-term stability (8 hours): ≤ ±0.05dB (equivalent ≤±1.2%)
Pigtail type and connector: SMF-28
Pigtail joint type: FC/APC
Control mode: RS232 serial communication
Communication interface: DB9 Female
Trigger mode: TTL, internal/external trigger (optional)
Electricity Desktop： 100~240V AC, <150W
Electricity module：12V 3A DC, <60W
Desktop Size：260(W)×320(D)×120(H)mm
module Size：139(W)×235(D)×70(H)mm
Operating temperature：5 ~ 35°C
Operating humidity：0~70%
