1550nm single-band narrow linewidth CW fiber laser
The single-band narrow linewidth fiber laser adopts the DFB laser cavity structure of rare earth doped fiber, and outputs a single longitudinal mode laser with a wavelength of 1550nm, a spectral linewidth of less than 3kHz, an output spectral edge-mode rejection ratio of more than 60dB, and a typical output power of 50mW, and a higher power version is available. Available in modules or benchtop packages, it is an ideal laser source for applications such as distributed sensing.
characteristic
Spectral linewidth ≤ 3KHz
All-fiber DFB resonator
The wavelength is stable and there is no mode hopping
apply
Lidar
Acoustic sensing, hydrophones
Fiber Optic Distributed Sensing
parameter
Center Wavelength ：1550nm±0.1nm

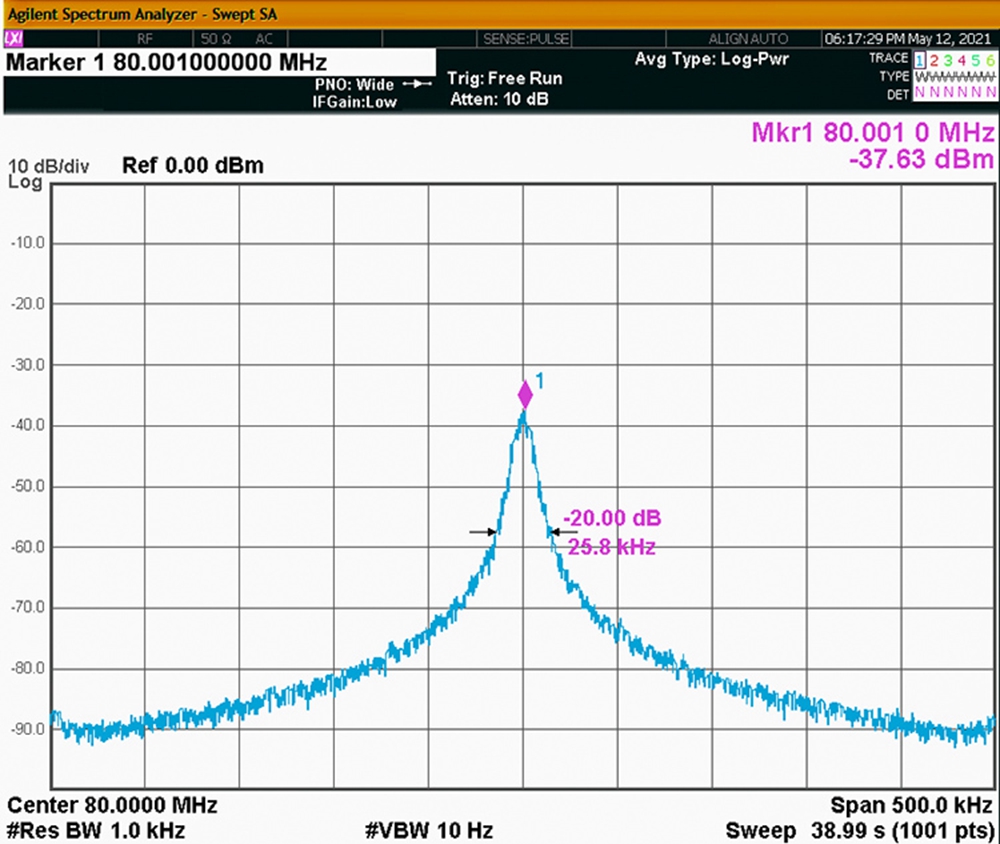

Spectral linewidth: ≤3kHz
Edge mold rejection ratio: ≥50dB
Wavelength instability: ≤±25MHz
Working mode: CW
Output power: 50/100/200/500
Short-term stability (15 mins): ≤ ±0.02dB (equivalent≤±0.5%)
Long-term stability (8 hours): ≤ ±0.05dB (equivalent ≤±1.2%)
Polarization State: Stochastic; Linear polarization
Pigtail type and connector: SMF-28/PM1550
Pigtail joint type: FC/APC
Control mode: RS232 serial communication
Communication interface: DB9 Female
Trigger mode: TTL, internal/external trigger (optional)
Electricity Desktop： 100~240V AC, <30W
Electricity module：12V 3A DC, <30W
Desktop Size：260(W)×320(D)×120(H)mm
module Size：139(W)×235(D)×70(H)mm
Operating temperature：5 ~ 35°C
Operating humidity：0~70%
