characteristic
Pulse width 1~100ps
The wavelength is 1530~1560 nm
Self-starting, maintenance-free
High stability
apply
Optical frequency combs
Supercontinuum
Terahertz waves
Ultrafast laser phenomenon
parameter
Wavelength ：1560nm

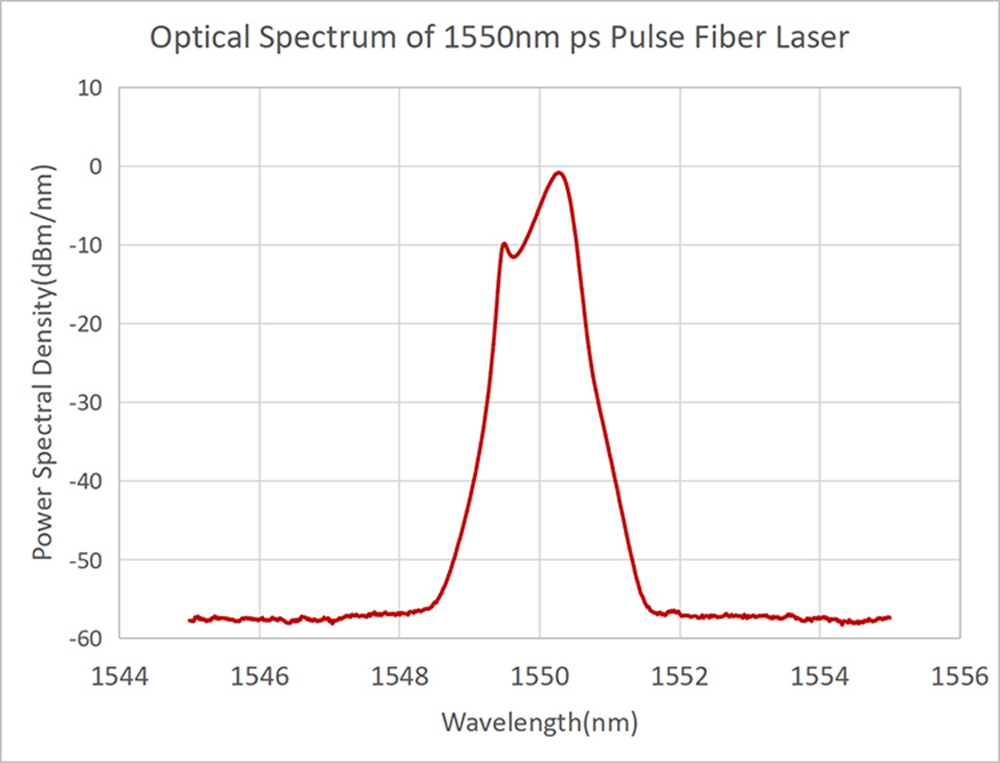

Spectral width：0.5nm-50nm

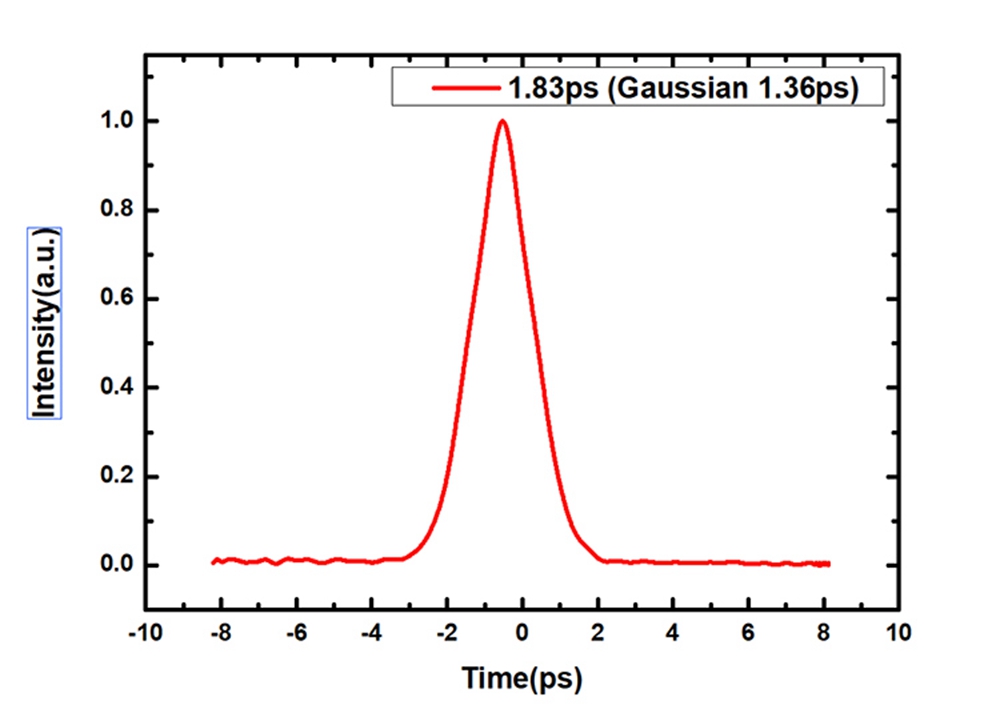

Pulse width ：1/10/20/50/100 Ps （customizable ）
Output power ：1-120mW（customizable ）

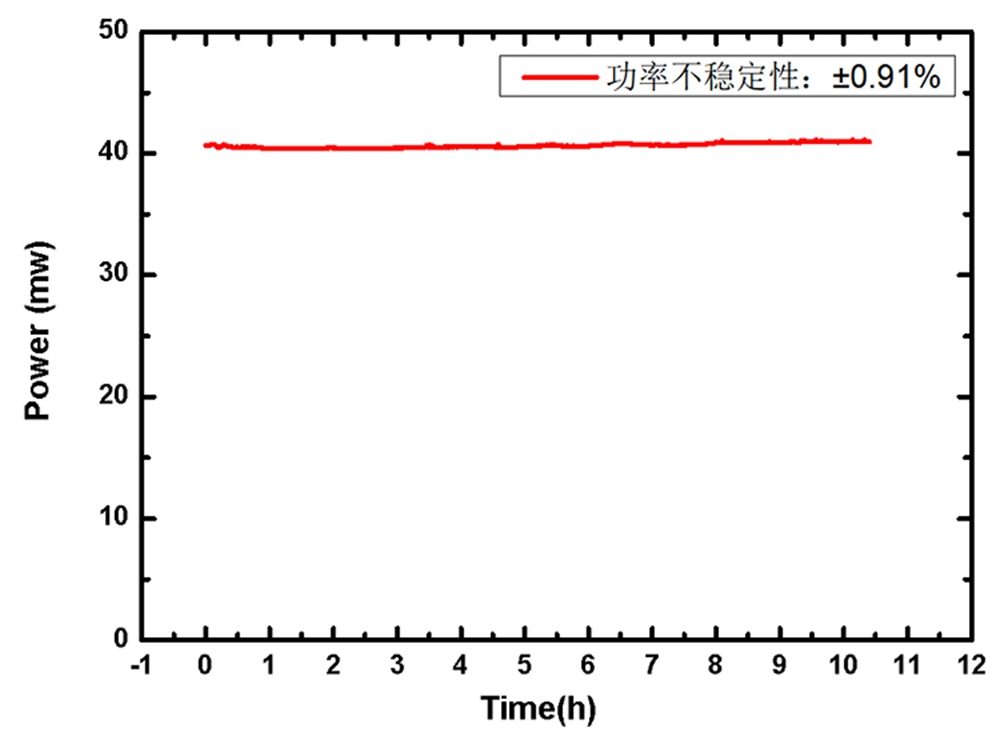

Power instability ：< ±1%

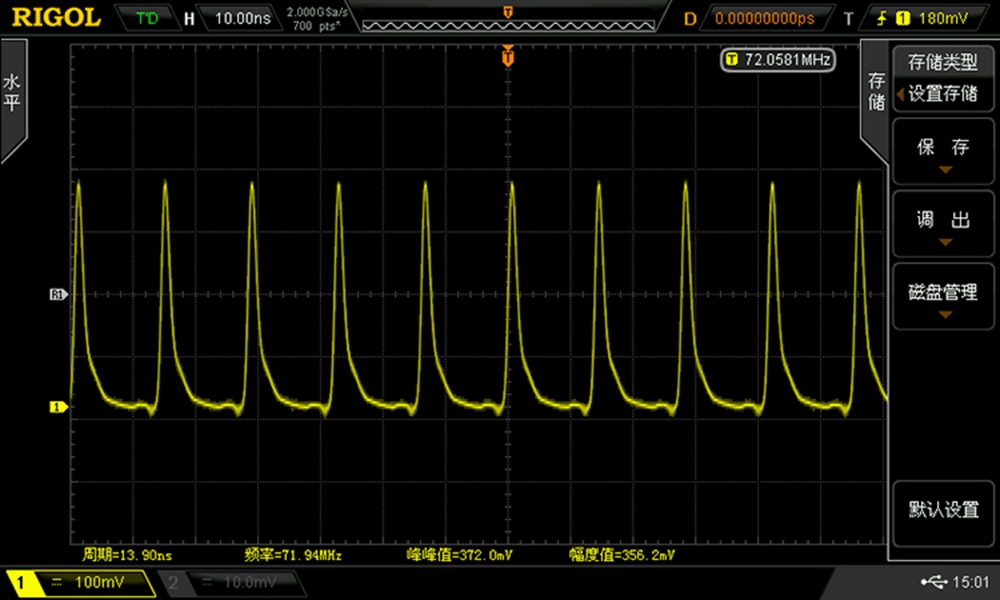

Repetition rate ： 15MHz-100MHz
Repetition rate instability: <100Hz
Single pulse energy：> 1nJ
Polarization state ：linear polarization
Output mode ：Spatial light
Output fiber type:Polarization-maintaining fiber 1m-
Optical connector type:FC/APC
Warm-up time ：< 1min
Electricity Desktop： 100~240V AC, <30W
Electricity module：5V DC, <20W
Desktop Size：260(W)×280(D)×120(H)mm
module Size：200(W)×121(D)×65(H)mm
Operating temperature：5 ~ 35°C
Operating humidity：0~70%
