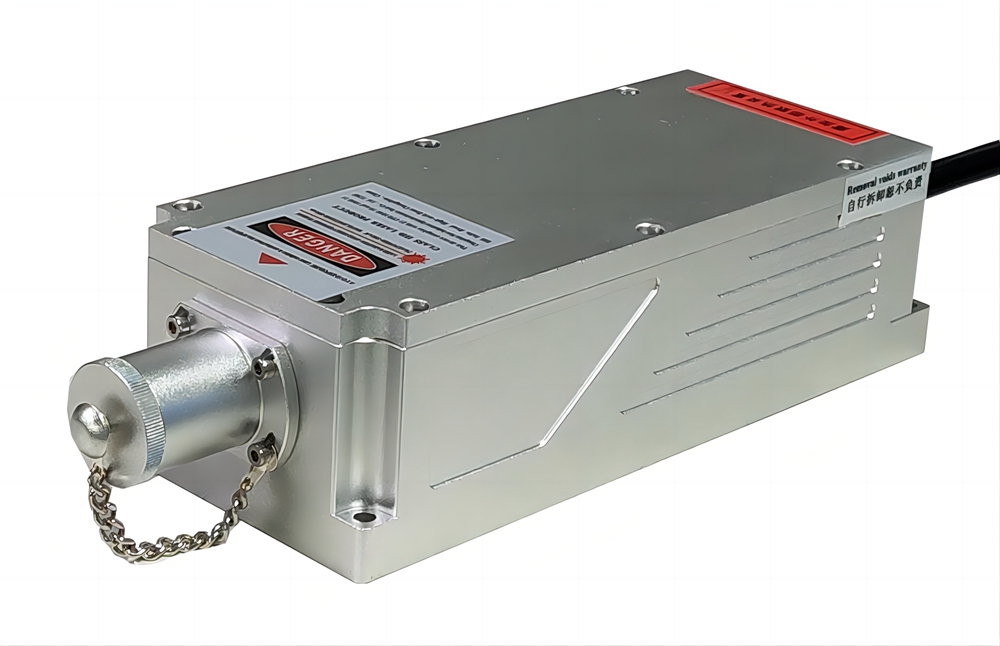

261nm 1-10mW pumped all-solid-state Q-switched laser

261nm 1-10mW pumped all-solid-state Q-switched laser

All solid state UV laser is made features of ultra compact, cost -effectiveness and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment, etc. All solid state infrared laser is made features of ultra compact, long lifetime, cost -effectiveness and easy operating, which is widely used in scientific experiment, laser fluorescence, etc.

Wavelength ：261nm±1nm
Output Power :1-10mW
Operating mode：Frequency conversion of Q-switched pulsed laser
Single pulse energy (µJ)：0.1~4
Pulse duration (ns)：~4
Peak power (kW)：0.25~1
Rep. rate (kHz)：INT FIXED (One internal fixed rep.rate) 1kHz
Power stability (rms, over 4 hours) : <5%, <3%
Transverse Mode : Near TEM00
Beam diameter at the aperture (1/e2, mm)：<3.0
Noise of amplitude (rms, 1Hz~20MHz）：<1%
Beam divergence, full angle (mrad)：<5.0
Polarization Ratio:>50:1, Vertical(Horizontal Optional)
Warm-up time (minutes):<5
Power supply (90-264VAC)：PSU-H-LED/PSU-H-FDA/PSU-H-OEM

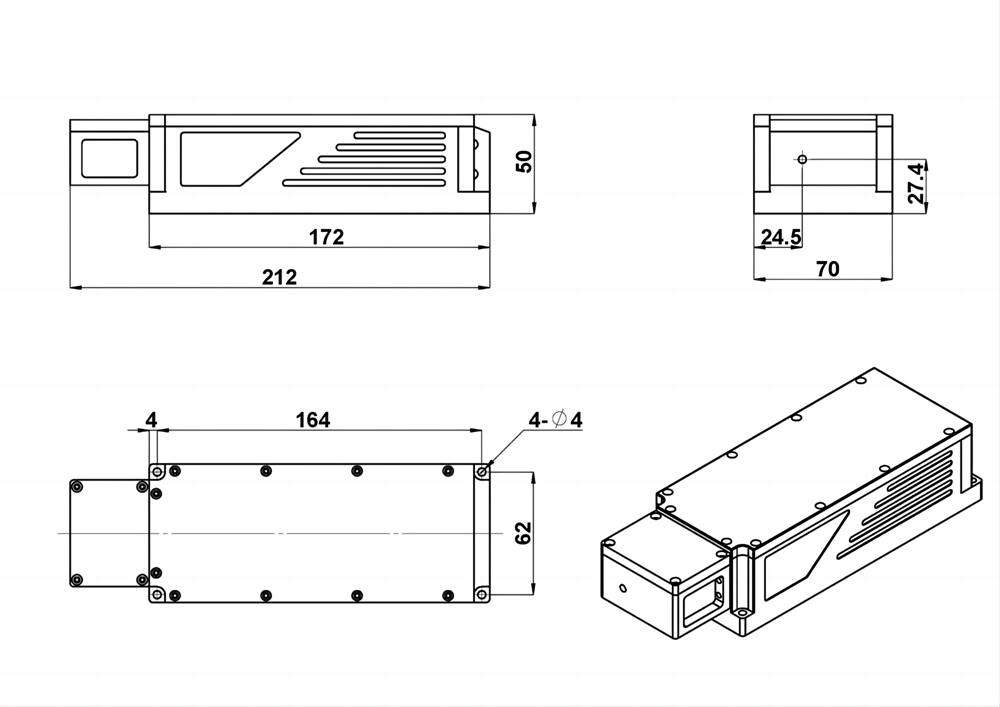

Beam height from base plate (mm):45
Operating Temperature (°C):10-35
