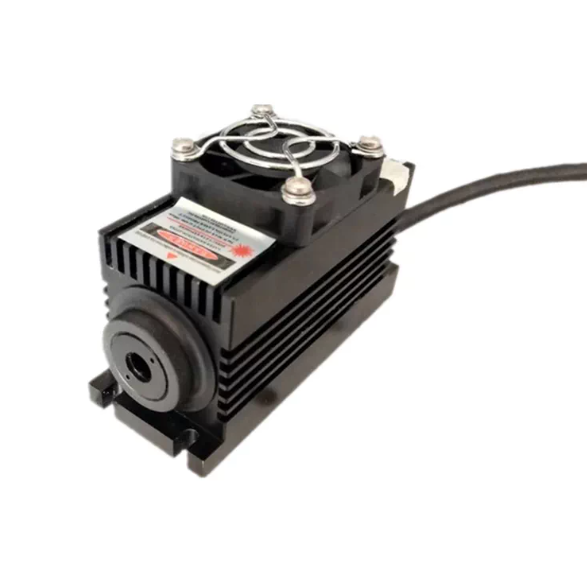

473nm DPSS Laser 5mW-200mW Gaussian Circular Beam Small Spot Size < 1.0 mm for Labs
Download the datasheet
Wavelength: 473 nm
Spatial Mode: TEM00
Output Power: 5mW,10mW….,200 mW
Residual IR(1064,808,946nm etc): <0.01%
Operation Mode: CW or Modulation
Modulation: Analog or TTL upto 30KHz
Polarization: Linear
Beam Spot Shape: Circular,aspect ratio<1.1:1
Pointing Stability: <0.05 mrad
Beam Diameter(1/e²): 2 mm
Beam Divergence: 0.5 mrad
Power Stability: <±5%per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Beam Quality(M²): <2.0
Optimum Operating Temperature: 2030℃
Storage Temperature: 1050℃
MTTF: 10,000 hrs
Dimensions: 100(L)x40(W)×50(H)mm³(fan adds 15mm to height)
Weight: 400g
Power Supply:
A.OEM type
LSR-PS-I:100(L)x58(W)×32(H)mm³ AC/DC PSU:85265V 50/60Hz input
B.Lab type
LSR-PS-IIS:104(W)x128(D)×89(H)mm³ 85265V 50/60Hz input
C.Lab Adjustable type
LSR-PS-II:179(W)x148(D)×56(H)mm³ 85265V 50/60Hz input
Modulation: 030khz Analog or TTL
