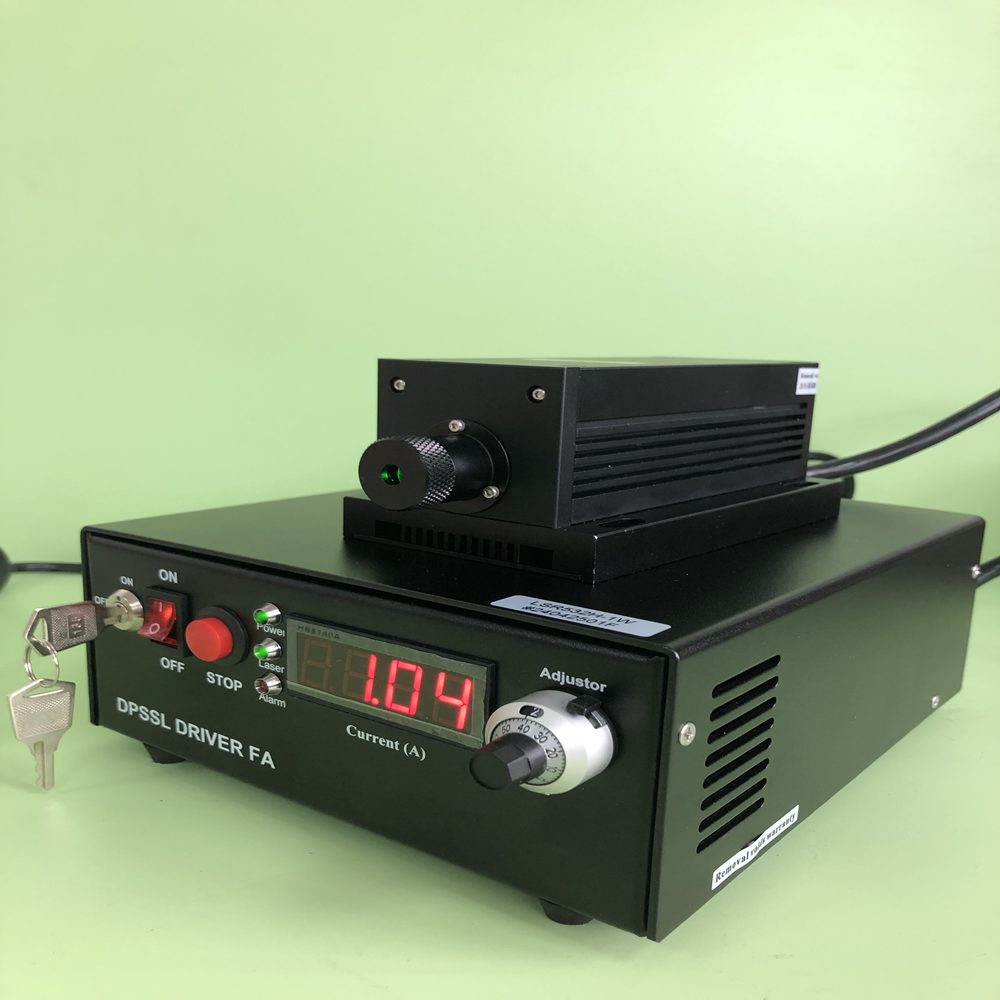

520nm Nanosecond Pulsed Green Laser 1mW-100mW
LOW NOISE GREEN DIODE LASER AT 505nm
It features ultra compact design, long lifetime, cost-effectiveness and
easy operation. They are widely used
in biological, medical, laser pumping, scientific research, etc.
Wavelength (nm)： 520nm
Operating mode： CW
Output power (mW) ：>1, 100,
Power stability (rms, over 4 hours) ：<3%, <2% ，<1%,
Transverse mode： Near TEM00
Beam divergence, full angle (mrad)： <1.0
Beam diameter at the aperture (1/e2 ,mm)： ~1.2
Modulation Depth (extinction ratio) ：>1000000:1
Beam height from base plate (mm) ：19
Warm-up time (minutes)： <5
Operating temperature ：15~35
Expected lifetime (hours) ：10000
Warranty period 1 year
Download the Datasheet
