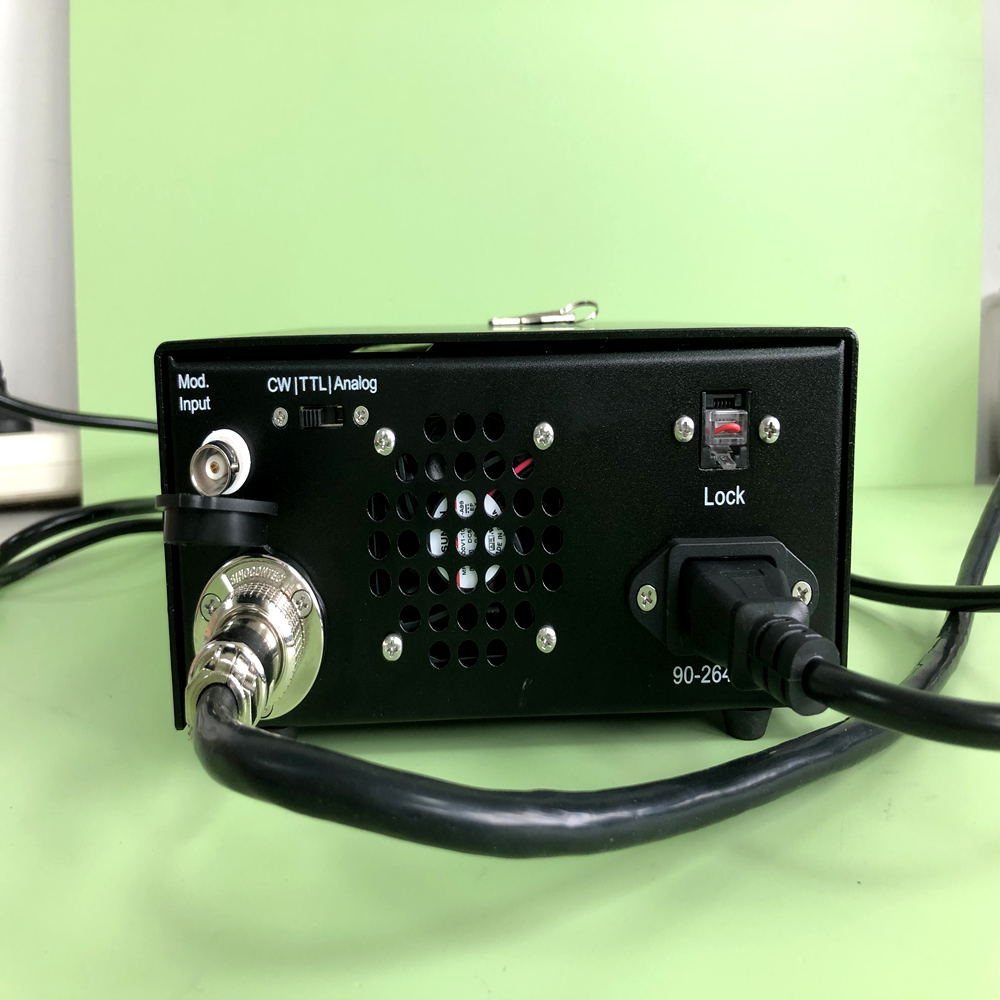

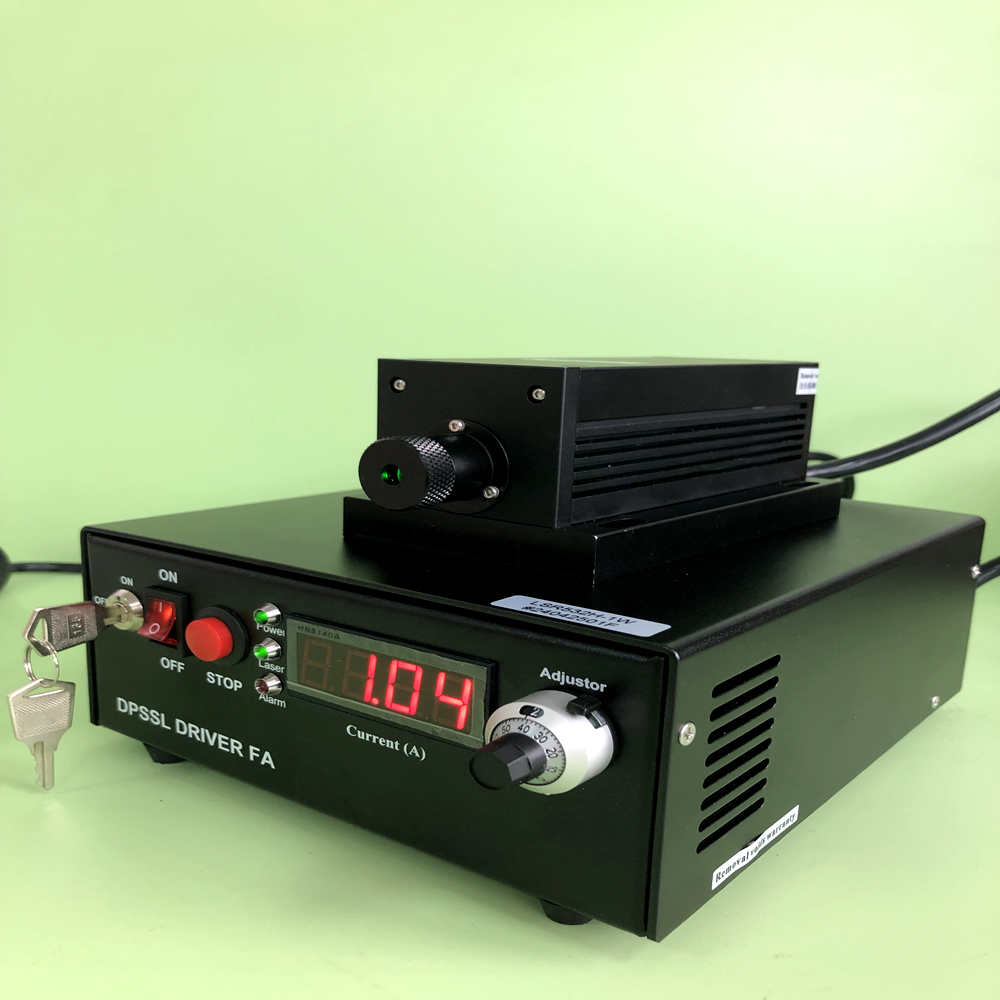

537nm High Stability Green Solid State Laser
All solid state laser is made features of high output power stability, good beamprofile,
ultra compact, long lifetime, low cost and easy operating, which is widely usedin collimation,
laser medical treatment, scientific experiment, optical instrument, etc.
Wavelength (nm)： 537nm
Operating mode： CW
Output power (mW) ：1-30
Power stability (rms, over 4 hours)：<3%, 2%，1%
Transverse mode：Near TEM00
Beam divergence, full angle (mrad)： <1.5
Beam diameter (,at the aperture (1/e2, mm)： <2.0
Beam height from base plate (mm) ：27.4
Warm-up time (minutes)： <5
Operating temperature ：15~35
Power supply(90-264VAC)：PSU-H-LED/PSU-H-FDA/PSU-SR
Expected lifetime (hours) ：10000
Warranty period 1 year
