594 nm DPSS Laser Low Noise Orange Solid State Laser
LD PUMPED ALL-SOLID-STATE LOW NOISE YELLOW LASER AT 594nm Low noise yellow laser at 594nm is made features of ultra compact, long lifetime, low cost and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc
Download Datasheet here
MLL-FN-594nm Orange Solid State Laser
Wavelength (nm) 594+-1
Operating mode CW
Output power (mW) >1,10,20, ... ,100
Power stability (rms,over 4 hours) <2%,<3%,<5%
Transverse mode TEM00
Noise of amplitude (rms,1Hz~20MHz) <1%
M2 factor <1.5
Beam diameter at the aperture (1/e2,mm) <1. 0
Beam divergence,full angle (mrad) <2. 0
Polarization ratio >100:1,
Horizontal±5 degree (Vertical Optional)
Warm-up time (minutes) <10 Pointing stability after warm-up (mrad) <0.05
Beam height from base plate (mm) 27.4 Operating temperature (C) 10~35

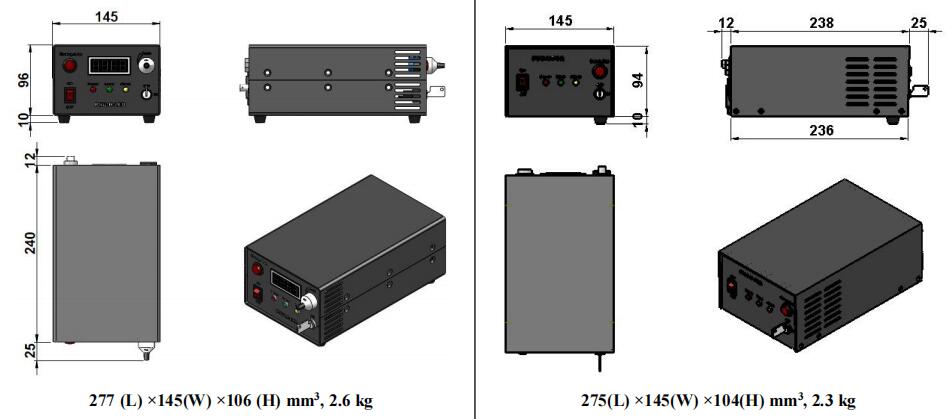

Power supply (90-264VAC) PSU-H-LED/PSU-H-FDA /PSU-SR
Modulation option TTL on/off,1Hz-1KHz,1KHz-10KHz,10KHz-30KHz; and Analog modulation option
Expected lifetime (hours) 10000
Warranty period 1 year
