High Energy Lamp Pumped Solid Q-Switched Pulsed Laser
High energy lamp pumped solid state
Q-switched laser at 532nm has the features
of high single pulse energy,short pulse
duration,and high peak power,which is
widely used in scientific research and so on.

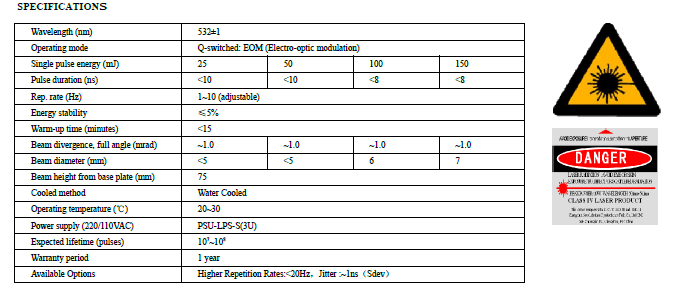

wavelength(nm):532±1
Operating mode Q-switched: EOM (Electro-optic modulation)
Single pulse energy (mJ): 25 (50 ;100 ;150)
Pulse duration (ns) <10 (<10 ;<8 ;<8)
Rep. rate (Hz) 1~10 (adjustable)
Energy stability ≤5%
Warm-up time (minutes) <15
Beam divergence, full angle (mrad) ~1.0
Beam diameter (mm) <5 (<5 ;6 ;7)

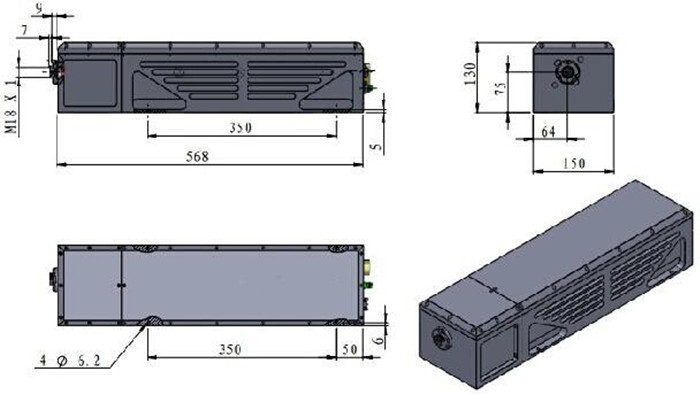

Beam height from base plate (mm) 75
Cooled method Water Cooled
Operating temperature (℃) 20~30
Power supply (220/110VAC) PSU-LPS-S(3U)
Expected lifetime (pulses) 107~108
Warranty period 1 year
Available Options Higher Repetition Rates:<20Hz,Jitter :~1ns(Sdev)
