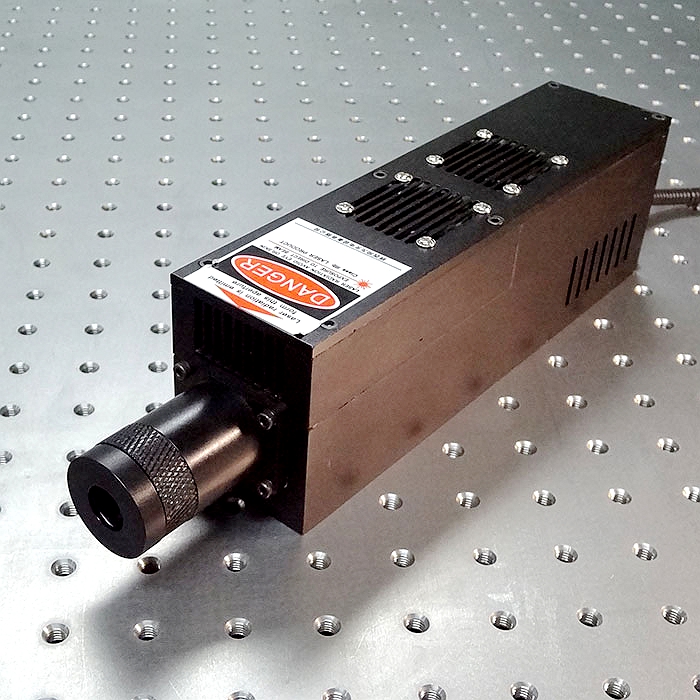

Mode Locked 343nm Fiber Laser Picosecond Pulsed UV Laser with Pulse width 10ps 10 Picoseconds

Mode Locked 343nm Fiber Laser Picosecond Pulsed UV Laser with Pulse width 10ps 10 Picoseconds



Wavelength (nm) 343±1
Operating mode Passively
Average power (mW) 1-50
Power stability (rms, 4 hours ±3℃) <5%, <3%
Pulse duration (ps) <10
M2 <2
Rep. rate
1 20-50MHz Polarization ratio (dB) >15 Horizontal (Vertical optional)
Warm-up time (minutes) <15
Beam height from base plate (mm) 40
Delivery fiber length (cm) 60
Cooled method Air cooled
Operating temperature (℃) 15-35
Operating voltage (VDC) 12V/11.5A
Expected lifetime (hours) >10000

$8,600.00

Add to Cart:
