Osram 520nm 50mW Green Laser Diode TO38

Osram 520nm 50mW Green Laser Diode TO38


  • Optical output power(continuous wave):
  • 50mW (Tcase=25℃)
  • Typ. emission wavelength: 520nm
  • Efficient radiation source for cw and pulsed operation
  • Single transverse mode semiconductor laser
  • high modulation bandwidth

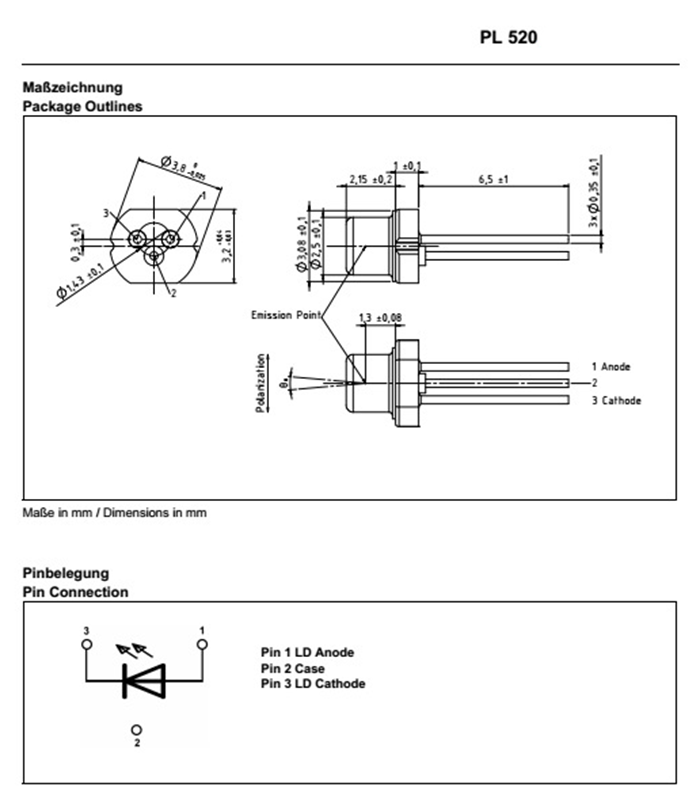

  • TO38 package
  • Laser diode isolated against package


  • Laser projection
  • Laser shows
  • Biomedical Applications
  • Holography
  • Metrology

Safety Advice

Depending om the mode of operation,these devices emit highly concentrated visible light which can be hazardous to the human eye.
Products which incorporate these devices have to follow the safety precautions found in IEC 60825-1 Safety of laser products"
