1570nm~1605nm L-band high-power single-mode erbium-doped fiber amplifier
Based on the stimulated amplification principle of optical signals in erbium-doped fibers, the L-band high-power erbium-doped fiber amplifier adopts high-efficiency single-mode fiber optical amplification design and high-power laser heat dissipation process to achieve high-power output of 1570~1605nm wavelength laser. It has the advantages of high power and low noise, and can be used in optical fiber communication systems, optical fiber sensing, lidar, etc.
characteristic
High output power
High gain factor
Low noise
apply
Optical fiber communication
Fiber optic sensing
Laser Lidar
parameter
Wavelength ：1570nm~1605nm
Input power:：-6~+10

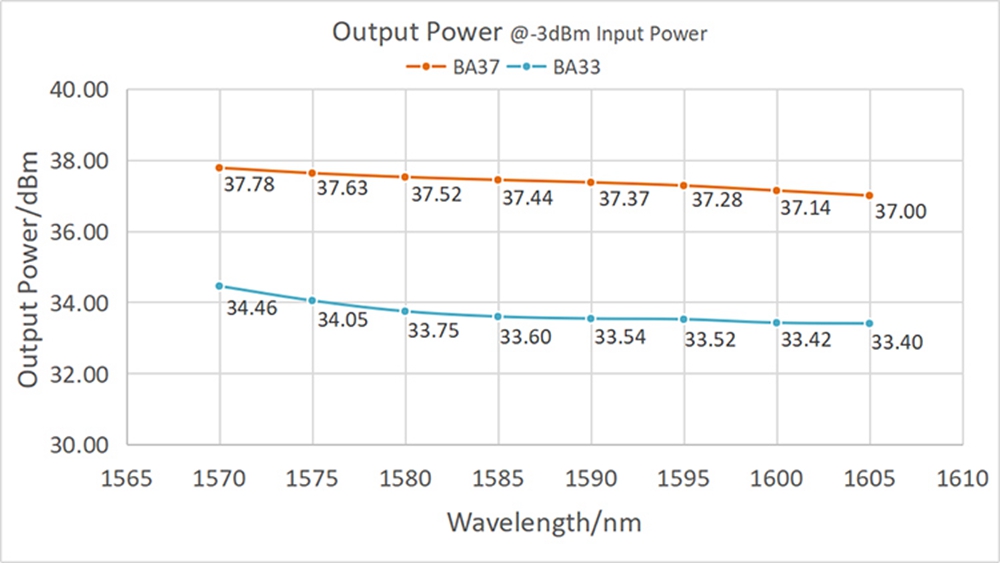

Saturation output power: 27/30/33/37/40
Output power adjustable range: 10%~100%
Noise figure：≤6.0dB
Polarization-dependent gain: <0.5
Polarization mode dispersion: 0.5ps
Input/output isolation:≥35dB
Optical power monitoring: input optical power monitoring, output optical power monitoring
Pigtail type and connector:SMF-28
Pigtail joint type: FC/APC
Working mode:Automatic Current Control (ACC)，/Automatic Power Control (APC)
Communication interface: DB9 Female
Electricity Desktop： 100~240V AC, <150W
Electricity module：12V DC, <60W
Desktop Size：260(W)×320(D)×120(H)mm
module Size：139(W)×235(D)×70(H)mm
Operating temperature：5 ~ 35°C
Operating humidity：0~70%
