940nm VCSEL Laser Diode Package 3535AlN 7060CUAG 2016AIN 10PCS

940nm VCSEL ,  Peak Wavelength 940nm. 10PCS 940nm 15mW-1000mW VCSEL 940nm VCSEL Laser Diode IN Package 3535AlN 7060CUAG 2016AIN

Features:
VCSEL arrays
The light intensity is evenly distributed
Wall-plug efficiency up to 50%
Low calorie, environmentally friendly and low-carbon
Optical power density is lower and safer
Wide operating temperature range
Planar package, small size, easy to integrate
High reliability, life > 50,000h

apply

automotive night vision lighting;
monitoring night vision lighting;
laser ranging/radar;
Infrared touch screen;
gesture recognition;
Smartphones/smart home appliances;
Drone;
machine vision;
3D scanning;
high-speed space communications;
Military applications.

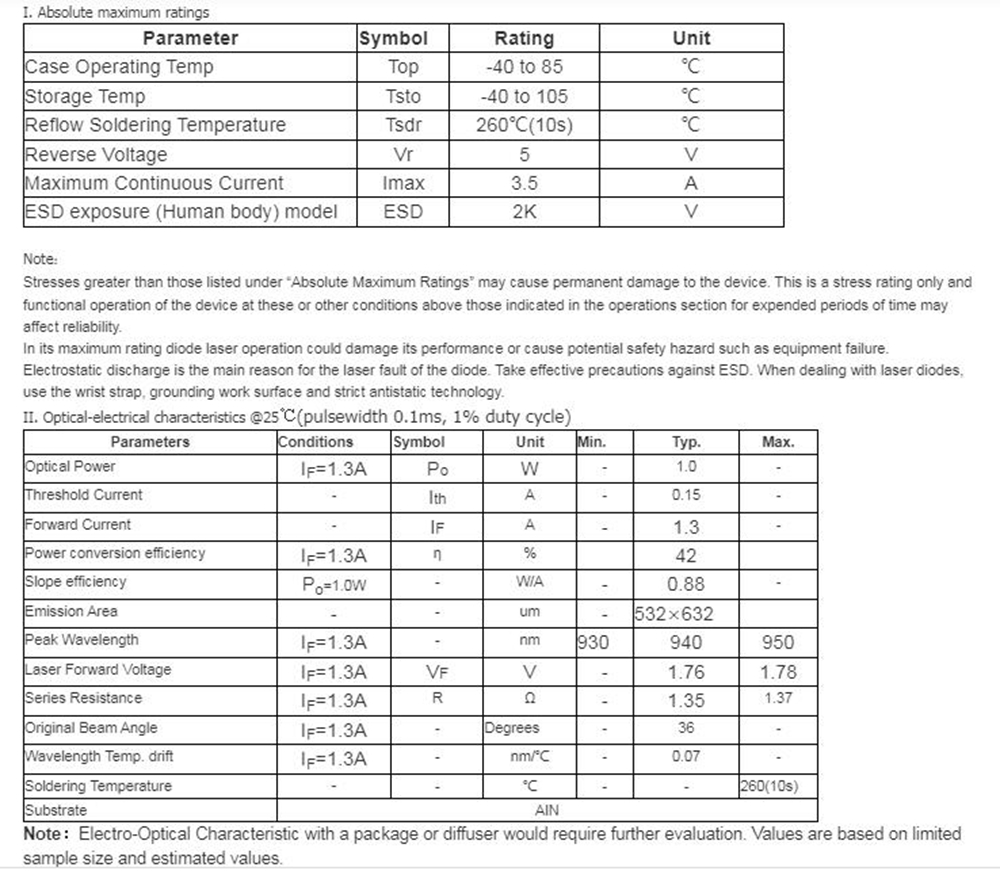

Parameter

Case Operating Temp：-40 to 85℃
Storage Temp：-40 to 105℃
Reflow Soldering Temperature：260℃(<10s)℃
Reverse Voltage：5V
Maximum Continuous Current：<3.5A
ESD exposure (Human body) model：2K V
