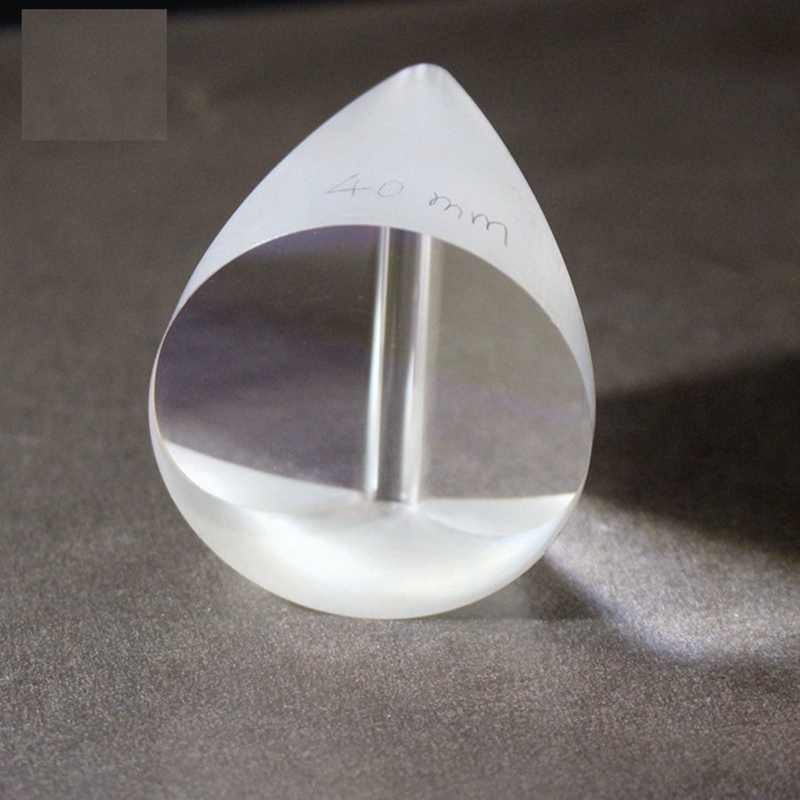

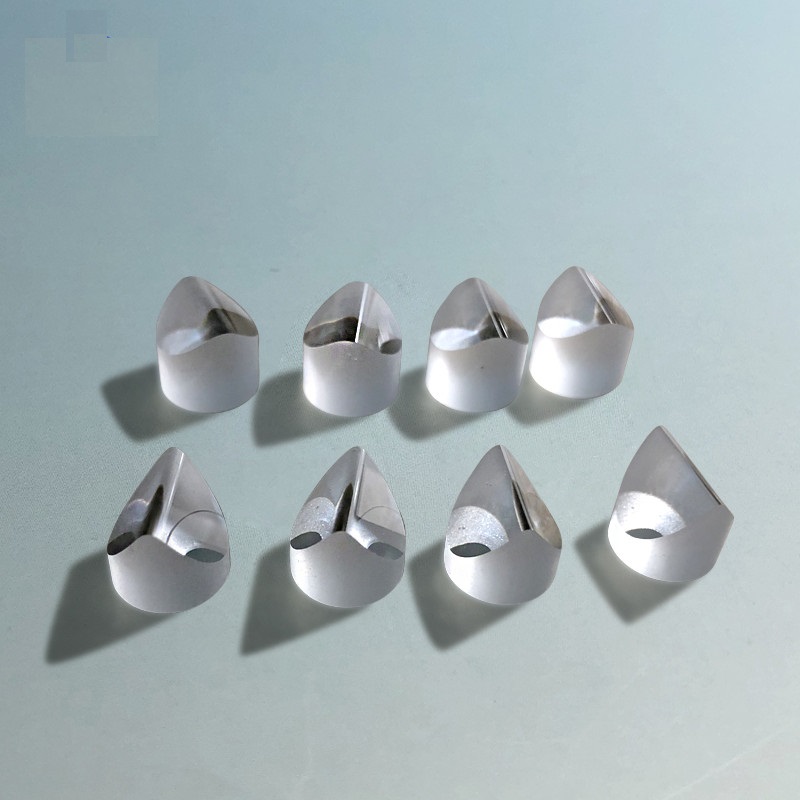

High Precision Powell Lens Fused Silica 385-1064nm

High Precision Powell Lens Fused Silica 385-1064nm

Powell lens is a Laser Line Generator Lenses, which optimally draws into a straight line with good optical density and better stability.After leading the laser beam to pass through. It can also remove the The central hotspot of the Gaussian beam.

specification

Material:    H-K9L JGS1 UV Fused Silica
Diameter    Standard ：9mm+0.00/-0.05 or 3mm to 60mm customized
Fan angle:3-110degree
Beam diameter:0.5-5mm or bigger
Uniformity:>80%(High Precison)
Straightness of line    :99.9%(High Precision)
Design wavelength    :385-1064nm
Surface Quality:40-20
Coating:AR Coating on request
Rohs:Compliant
