red green blue The small circle is dotted in the middle of the circle laser module
parameter
3.5 degree small circle with center point effect red laser (model
At 0.5 meters, the diameter of the circle punched out is 31 mm
At 1 meter, the diameter of the circle punched is 62 mm
The installation height can be used from 0 meters to 5 meters
The whole set includes: laser head + bracket + 1-3V adjustable power supply
Output wavelength: 650nm (customizable)
Die power: 100MW (optional)
Operating Voltage: DC 2.8V to 5.2V (customizable)
Operating current: <500mA

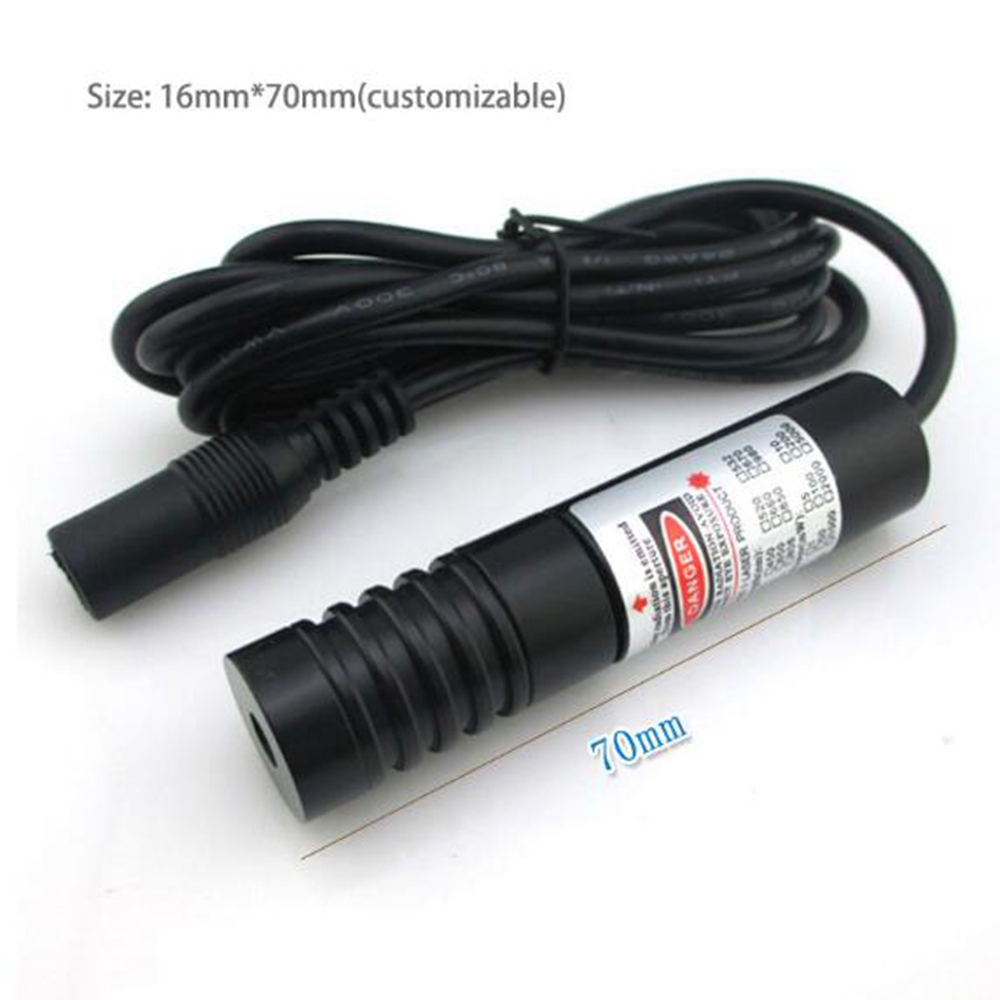

Dimensions: 16*70mm (customizable)
Optical lens: grating sheets
