S3584-09 Si PIN photodiode Large photosensitive area Si PIN photodiodes

S3584-09 Si PIN photodiode Large photosensitive area Si PIN photodiodes

Features
-Sensitivity matching with BGO and CsI(TI) scintillators
-Low capacitance
-High-speed response
-High stability
-Good energy resolution

Specifications

Photosensitive area    28 × 28 mm
Number of elements    1
Package    Ceramic
Cooling    Non-cooled
Reverse voltage (max.)    100 V

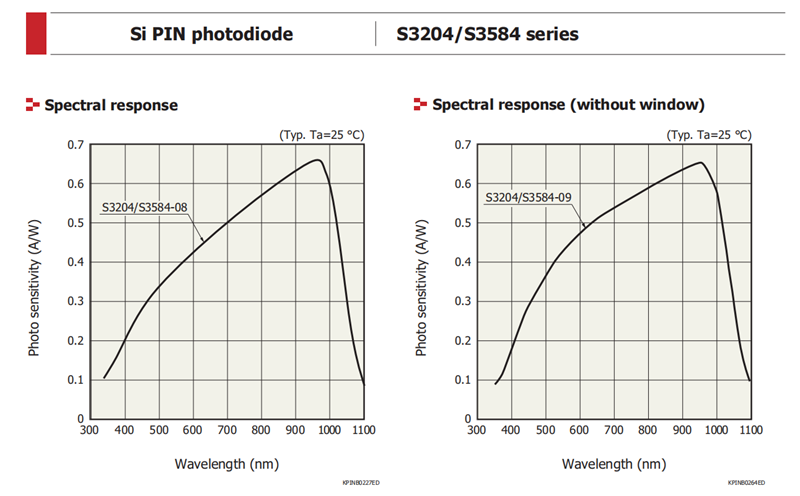

Spectral response range    340 to 1100 nm
Peak sensitivity wavelength (typ.)    960 nm
Photosensitivity (typ.)    0.66 A/W
Dark current (max.)    30000 pA
Cutoff frequency (typ.)    10 MHz
Terminal capacitance (typ.)    300 pF
Noise equivalent power (typ.)    8.6×10-14 W/Hz1/2
